Seata分布式事务

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>
{
    private Integer code;
    private String  message;
    private T       data;

    public CommonResult(Integer code, String message)
    {
        this(code,message,null);
    }
}

package com.atguigu.springcloud.alibaba.domain;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.math.BigDecimal;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Order
{
    private Long id;

    private Long userId;

    private Long productId;

    private Integer count;

    private BigDecimal money;

    private Integer status; //订单状态：0：创建中；1：已完结
}

import com.atguigu.springcloud.alibaba.domain.Order;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

@Mapper
public interface OrderDao
{
    //1 新建订单
    void create(Order order);

    //2 修改订单状态，从零改为1
    void update(@Param("userId") Long userId,@Param("status") Integer status);
}

import com.atguigu.springcloud.alibaba.domain.Order;

public interface OrderService
{
    void create(Order order);
}

import com.atguigu.springcloud.alibaba.domain.CommonResult;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;

import java.math.BigDecimal;

@FeignClient(value = "seata-storage-service")
public interface StorageService
{
    @PostMapping(value = "/storage/decrease")
    CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}

import com.atguigu.springcloud.alibaba.domain.CommonResult;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;

import java.math.BigDecimal;

@FeignClient(value = "seata-account-service")
public interface AccountService
{
    @PostMapping(value = "/account/decrease")
    CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}

import com.atguigu.springcloud.alibaba.dao.OrderDao;
import com.atguigu.springcloud.alibaba.domain.Order;
import com.atguigu.springcloud.alibaba.service.AccountService;
import com.atguigu.springcloud.alibaba.service.OrderService;
import com.atguigu.springcloud.alibaba.service.StorageService;
import io.seata.spring.annotation.GlobalTransactional;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
@Slf4j
public class OrderServiceImpl implements OrderService
{
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;

    /**

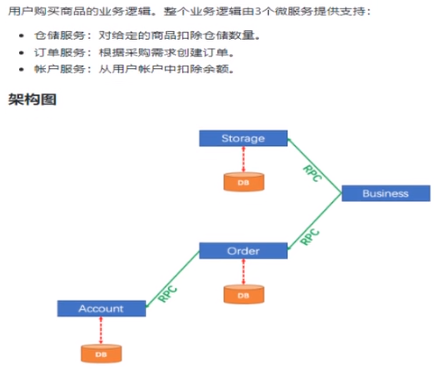

     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：下订单->扣库存->减余额->改状态
     */
    @Override
    //@GlobalTransactional(name = "fsp-create-order",rollbackFor = Exception.class)
    public void create(Order order)
    {
        log.info("----->开始新建订单");
        //1 新建订单
        orderDao.create(order);

        //2 扣减库存
        log.info("----->订单微服务开始调用库存，做扣减Count");
        storageService.decrease(order.getProductId(),order.getCount());
        log.info("----->订单微服务开始调用库存，做扣减end");

        //3 扣减账户
        log.info("----->订单微服务开始调用账户，做扣减Money");
        accountService.decrease(order.getUserId(),order.getMoney());
        log.info("----->订单微服务开始调用账户，做扣减end");

        //4 修改订单状态，从零到1,1代表已经完成
        log.info("----->修改订单状态开始");
        orderDao.update(order.getUserId(),0);
        log.info("----->修改订单状态结束");

        log.info("----->下订单结束了，O(∩_∩)O哈哈~");

    }
}

import com.atguigu.springcloud.alibaba.domain.CommonResult;
import com.atguigu.springcloud.alibaba.domain.Order;
import com.atguigu.springcloud.alibaba.service.OrderService;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
public class OrderController
{
    @Resource
    private OrderService orderService;


    @GetMapping("/order/create")
    public CommonResult create(Order order)
    {
        orderService.create(order);
        return new CommonResult(200,"订单创建成功");
    }
}

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@MapperScan({"com.atguigu.springcloud.alibaba.dao"})
public class MyBatisConfig {
}

import com.alibaba.druid.pool.DruidDataSource;
import io.seata.rm.datasource.DataSourceProxy;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.transaction.SpringManagedTransactionFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import javax.sql.DataSource;

/**

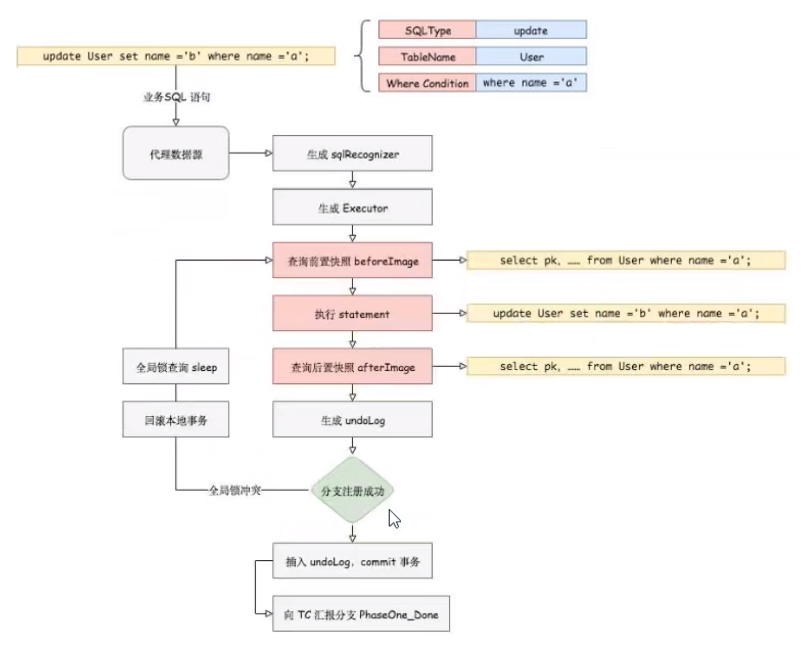

 * 使用Seata对数据源进行代理
 */
@Configuration
public class DataSourceProxyConfig {

    @Value("${mybatis.mapperLocations}")
    private String mapperLocations;

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource(){
        return new DruidDataSource();
    }

    @Bean
    public DataSourceProxy dataSourceProxy(DataSource dataSource) {
        return new DataSourceProxy(dataSource);
    }

    @Bean
    public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSourceProxy);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean.getObject();
    }

}

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

@EnableDiscoveryClient
@EnableFeignClients
//取消数据源的自动创建，而是使用自己定义的
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
public class SeataOrderMainApp2001
{

    public static void main(String[] args)
    {
        SpringApplication.run(SeataOrderMainApp2001.class, args);
    }
}

import lombok.Data;

@Data
public class Storage {

    private Long id;

    /**
     * 产品id
     */
    private Long productId;

    /**
     * 总库存
     */
    private Integer total;

    /**
     * 已用库存
     */
    private Integer used;

    /**
     * 剩余库存
     */
    private Integer residue;
}

import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

@Mapper
public interface StorageDao {

    //扣减库存
    void decrease(@Param("productId") Long productId, @Param("count") Integer count);
}

public interface StorageService {
    /**
     * 扣减库存
     */
    void decrease(Long productId, Integer count);
}

import com.atguigu.springcloud.alibaba.dao.StorageDao;
import com.atguigu.springcloud.alibaba.service.StorageService ;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;


@Service
public class StorageServiceImpl implements StorageService {

    private static final Logger LOGGER = LoggerFactory.getLogger(StorageServiceImpl.class);

    @Resource
    private StorageDao storageDao;

    /**
     * 扣减库存
     */
    @Override
    public void decrease(Long productId, Integer count) {
        LOGGER.info("------->storage-service中扣减库存开始");
        storageDao.decrease(productId,count);
        LOGGER.info("------->storage-service中扣减库存结束");
    }
}

import com.atguigu.springcloud.alibaba.domain.CommonResult ;
import com.atguigu.springcloud.alibaba.service.StorageService ;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class StorageController {

    @Autowired
    private StorageService storageService;

    /**
     * 扣减库存
     */
    @RequestMapping("/storage/decrease")
    public CommonResult decrease(Long productId, Integer count) {
        storageService.decrease(productId, count);
        return new CommonResult(200,"扣减库存成功！");
    }
}

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.math.BigDecimal;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Account {

    private Long id;

    /**
     * 用户id
     */
    private Long userId;

    /**
     * 总额度
     */
    private BigDecimal total;

    /**
     * 已用额度
     */
    private BigDecimal used;

    /**
     * 剩余额度
     */
    private BigDecimal residue;
}

import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Repository;

import java.math.BigDecimal;

@Mapper
public interface AccountDao {

    /**
     * 扣减账户余额
     */
    void decrease(@Param("userId") Long userId, @Param("money") BigDecimal money);
}

import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

import java.math.BigDecimal;

public interface AccountService {

    /**
     * 扣减账户余额
     * @param userId 用户id
     * @param money 金额
     */
    void decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}

import com.atguigu.springcloud.alibaba.dao.AccountDao;
import com.atguigu.springcloud.alibaba.service.AccountService ;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.math.BigDecimal;
import java.util.concurrent.TimeUnit;

/**
 */
@Service
public class AccountServiceImpl implements AccountService {

    private static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);


    @Resource
    AccountDao accountDao;

    /**
     * 扣减账户余额
     */
    @Override
    public void decrease(Long userId, BigDecimal money) {
        LOGGER.info("------->account-service中扣减账户余额开始");
        accountDao.decrease(userId,money);
        LOGGER.info("------->account-service中扣减账户余额结束");
    }
}

import com.atguigu.springcloud.alibaba.domain.CommonResult ;
import com.atguigu.springcloud.alibaba.service.AccountService ;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.math.BigDecimal;

@RestController
public class AccountController {

    @Resource
    AccountService accountService;

    /**
     * 扣减账户余额
     */
    @RequestMapping("/account/decrease")
    public CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money){
        accountService.decrease(userId,money);
        return new CommonResult(200,"扣减账户余额成功！");
    }
}

@Service
public class AccountServiceImpl implements AccountService {

    private static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);


    @Resource
    AccountDao accountDao;

    /**
     * 扣减账户余额
     */
    @Override
    public void decrease(Long userId, BigDecimal money) {
        LOGGER.info("------->account-service中扣减账户余额开始");

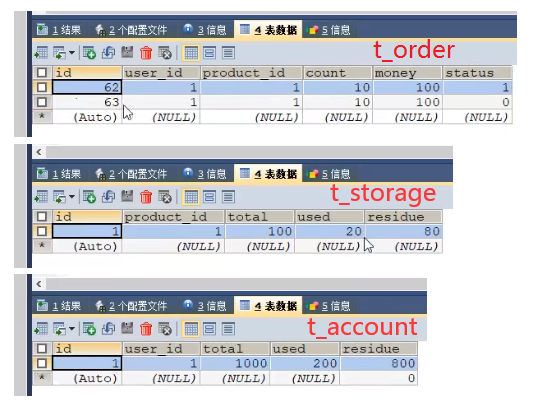

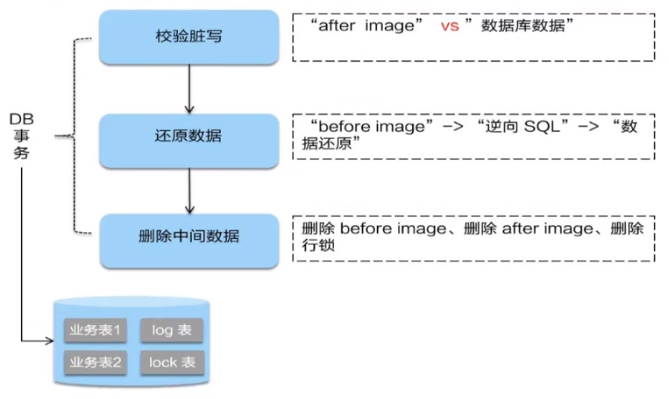

        //模拟超时异常，全局事务回滚
        //暂停几秒钟线程
        try { TimeUnit.SECONDS.sleep(20); } catch (InterruptedException e) { e.printStackTrace(); }
        accountDao.decrease(userId,money);
        LOGGER.info("------->account-service中扣减账户余额结束");
    }
}

@Service
@Slf4j
public class OrderServiceImpl implements OrderService {

    ...

    /**

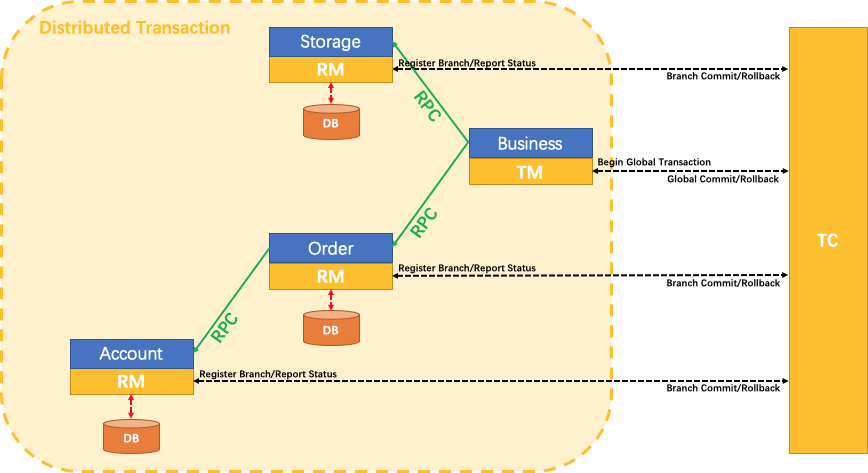

     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     * 简单说：下订单->扣库存->减余额->改状态
     */
    @Override
    //rollbackFor = Exception.class表示对任意异常都进行回滚
    @GlobalTransactional(name = "fsp-create-order",rollbackFor = Exception.class)
    public void create(Order order)
    {
		...
    }
}
